- Place of Origin: China
- Brand Name: QUANSHUN
- Model Number: XZ643TC-16C

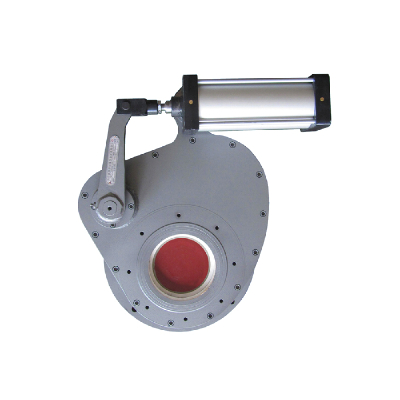

The pneumatic ceramic rotary gate valve is developed according to the fault frequently occurred during the operation of the dome valve .The ceramics is used as the wear-resisting parts.The sealing surface of the product is made of toughened engineering ceramics with good abrasion resistance and prolonged service life.This valve is widely use in dense phase pneumatic conveying system of power plant.
Benefits :
1.longer working life.
2.Customized structural length and connection size is available.
3.The plane rotational motion of the valve disc can avoid the ash deposition on the sealing surface.
5. The rotation structure with shorter stroke makes for less abrasion and longer life time of the pneumatic ceramic rotary gate valve.
- Place of Origin: China
- Brand Name: QUANSHUN
- Model Number: XZ643TC-16C
Technical Parameters
Size : 2”~12” DN50~DN300
Pressure: Class 150 PN1.0-PN1.6MPa
Body material : WCB(A105,CF8(304),etc.
Sealing Material :Toughened engineering ceramic
Connection Type :Flange type
Drive method: Pneumatic
